How It Works

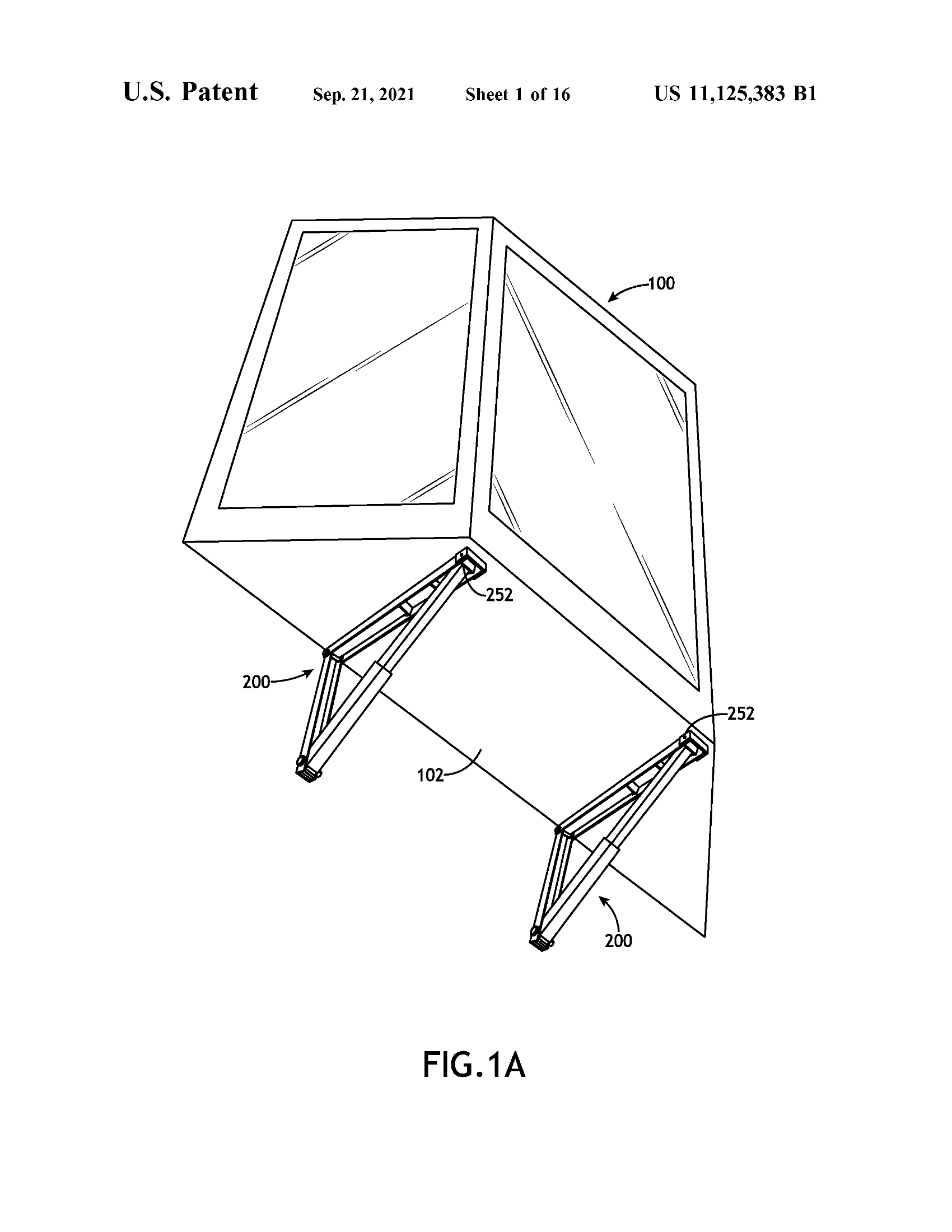

From U.S. Patent 11,125,383 — 3D view of the support device installed beneath a bay window
A stronger, simpler way to support bay windows — from the bottom up.
Seeking Manufacturing PartnersBay windows are typically supported from above, anchored to the structure overhead. Over time, that support can loosen and the window begins to sag. Other approaches support the window from below using shims — workable at install, but difficult to readjust as the window settles.
Either way, a window that drifts out of alignment can lead to structural issues, water infiltration, and windows that become hard to open or close — a problem that only gets worse with age.
The Adjustable Support Device takes a different approach: a load-bearing brace beneath the window that can be fine-tuned at install and readjusted at any point afterward — using three key components:
Direct, load-bearing support that keeps the window aligned and operating smoothly — and stays adjustable for the lifetime of the window.
From U.S. Patent 11,125,383 — 3D view of the support device installed beneath a bay window

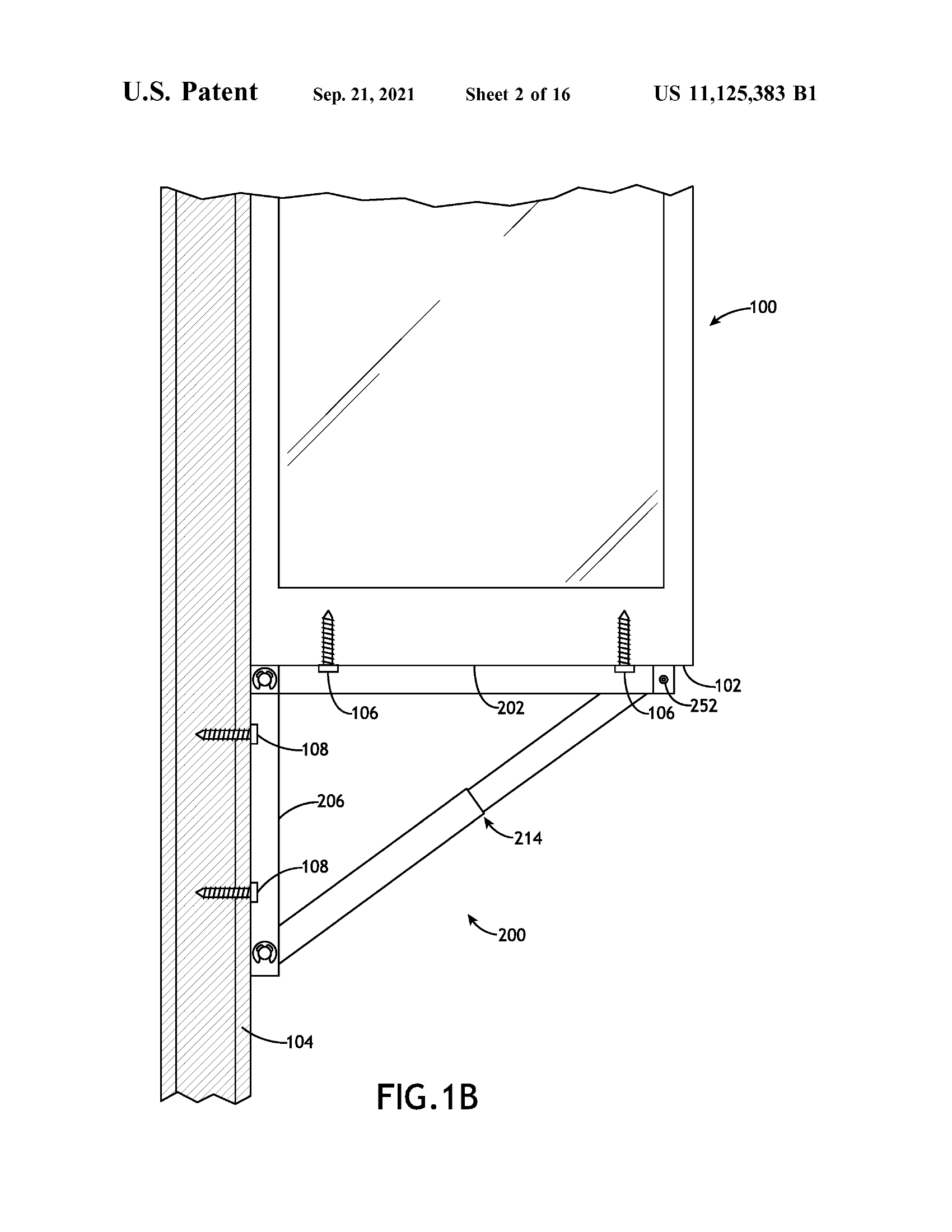

Side view showing the horizontal, vertical, and adjustable diagonal segments
Direct load-bearing support from below — keeps the window aligned and operating smoothly.
Pin-based locking system allows the brace to be set at different positions for various window sizes and angles.
Designed for the lifetime of the window — no shims to settle, nothing to retighten over time.
Fine-tune the brace any time the window shifts — without reshimming or removing the unit.
This invention is protected by two U.S. patents:
U.S. Patent 10,760,323 — Granted September 1, 2020
U.S. Patent 11,125,383 — Granted September 21, 2021
The Adjustable Support Device is patented and currently seeking manufacturing and distribution partners.
